A pressure gauge kit provides users with a comprehensive set of tools to measure and monitor pressure levels in various systems and applications, helping to maintain system performance and prevent potential issues.
Specifications
Max Working Pressure: 600 Bar/10000 PSI/ 60Mpa
Condition: Aftermarket new. For specific demands, please contact us.
Accuracy:+/-1.6%
Operating Temperature:-10-60°C
Overload Capacity:150%
Response Time:≤50ms
Warranty: 12 months
Material: Silicone oil, 304 stainless steel
Application: Caterpillar/CASE/John, etc

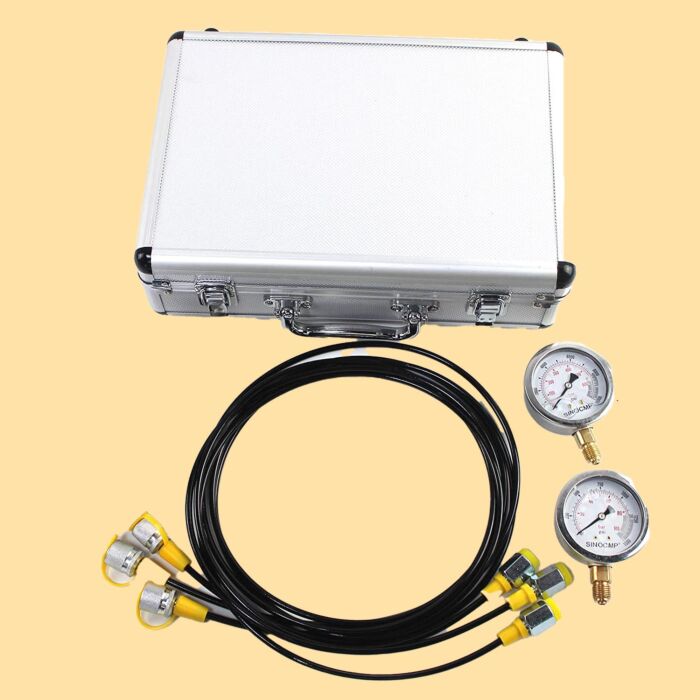

This kit includes:
4 Gauges: 1 pc Ø63mm-0-100 Bar/0-1500 PSI, 1 pc Ø63mm-0-250 Bar/0-4000 PSI, 1pc Ø63mm-0-400 Bar/0-6000 PSI, 1 pc Ø63mm-0-600 Bar/0-10000PSI 10 Couplings: G1/8----1 PC; G1/4----1 PC; G3/8----1 PC; M10*1----1 PC; M10*1.25----1 PC; M12*1.5----1 PC; M14*1.5----1 PC; UNF7/16-20----1 PC; UNF9/16-18----1 PC; Quick connector B compatible for Caterpillar CAT/CASE/John Deere----1 PC 3 Test Hoses: Length= 63 inches
More Details
Product Weight: 3.5kg
Product Dimensions: /
Shipping Dimensions:12.99 x 10.63 x 4.13 inches
Package: Standard retail carton
Brand: Engiparts
Country of Origin: China
Shipping & Delivery: Your package will be sent within 1-3 business days, and another 3-5 business days to arrive in your country. Once the order has shipped, you will receive an email with a link to track its progress.
Why Choose This?
The advanced silicone oil keeps its original color and Vibration-resistant, accurate reading.
It can be used in any weather, even it's a rainy day.
Can be taken to work in harsh environments.
304 stainless steel gauge housing more robust protection and anti-fall longer service life.
